제품 상세 정보:
|
| 상품 이름: | 진동 차단기 | 케이블 크기: | 6-20mm |
|---|---|---|---|
| 재료: | PVC | 애플리케이션: | 미풍 진동을 감소시킵니다 |
| 중량: | 0.43kgs | 샘플: | 유효한 무료 샘플 |
| 표준 또는 비정상: | 표준 | 쿠스토마데: | 이용 가능합니다 |
| 상태: | 새롭습니다 | ||
| 강조하다: | 0.8in 진동 댐퍼,HR 진동 Dampers,6mm 감쇄한 진동 |
||

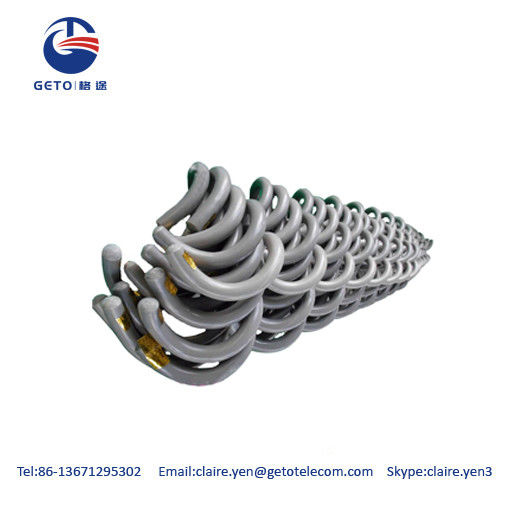

6 - 20 mm ADSS Aerial Fiber Optic Cable Vibration Damper
Usage
ADSS vibration dampers (PVC Helical Rod for ADSS ) reduces Aeolian Vibration (the high frequency, low amplitude vibration caused by horizontal wind passing across the line. It it designed to be used on ADSS/ OPGW and conductors with an outside diameter less than 0.75".
Feature
1. Material of high-strength,antigenic,high-elasticity PVC plastic
2. Simple structure, convenient installation, easy maintenance
3. Installed on ADSS and OPGW cables with diameter less than 12mm
4. Include gripping section and damping section
5. Protect cable from shaking and damping
Specification
| Model | Suitable Cable Diameter (mm) | Gripping Section (mm) | Total Length (mm) | Color Code |
| GTSV 0829 125 | 6.3-8.29 | 250 | 1250 | Orange |
| GTSV 1170 130 | 8.3-11.7 | 250 | 1300 | Yellow |
| GTSV 1430 135 | 11.71-14.3 | 250 | 1350 | Green |
| GTSV 1930 165 | 14.31-19.3 | 330 | 1650 | Blue |
Installation
Application
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
