제품 상세 정보:
|
| 상품 이름: | ADSS 섬유 케이블 | 섬유 유형: | ITU G652D, G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| 섬유 핵심: | 4-96 핵심 | 애플리케이션: | 자립하 야외 광섬유 케이블 |
| 기갑: | 예 | 작동 온도: | -40℃에 + 70℃ |
| 덮개 바깥쪽에: | 까만 폴리에틸렌 (PE) | 포장: | 1 km/2km/4km/roll |
| 색: | 검정색, 보통 흑색 컬러, 노란 연한 녹청색인 푸르 또는 다른 사람 | 재킷 물자: | LSZH, PVC, PE, TPU, PVC / LSZH |
| 칼집: | MDPE / HDPE, 충실, LSZH, PVC, ect | 힘 일원: | 강선, 금속성 와이어, FRP |
| 강조하다: | G657A 12 광섬유 케이블,4000m 12 광섬유 케이블,ADSS는 섬유 케이블을 강탈했습니다 |
||

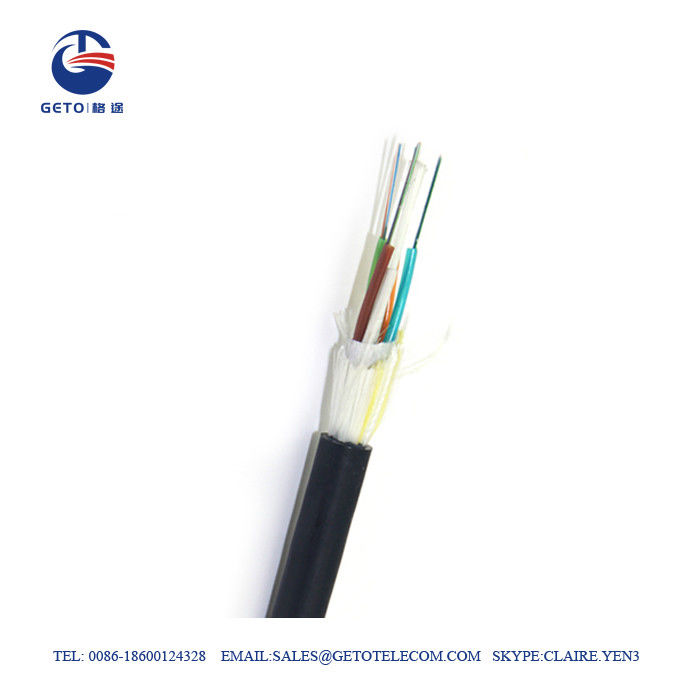

12 core optical fiber cable SM ADSS Fiber Cable
Description
ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.
Characteristics
Excellent water-blocking performance;
Excellent resistance to lateral pressure, and mechanical and temperature performance.
Excellent performance of resistance to electromagnetic interference.
Specification
Single Sheath ADSS (loose tube stranding, Non-metal strength member, Half dry water-blocking, PE inner sheath, Aramid yarn strength member, PE outer sheath)
| Item | 62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G. 652 1310nm/1550nm |
G. 655 1550nm/1625nm |
| Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
| Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
| Structure parameters: | |||||||
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
| Cable Type | Drum | ||||
| Height(mm) | Width (mm) | Inner Diameter (mm) | Length (Km) | Drum Type | |
| ADSS-4 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-6 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-8 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-12 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-24 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-36 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-48 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-72 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-96 | 1200 | 760 | 650 | 2 | Plywood wood drum |
